2015年8月17日 星期一

WebCamera_Show

import numpy as np
import cv2

cap = cv2.VideoCapture(0)
# Define the codec and create VideoWriter object
fourcc = cv2.cv.CV_FOURCC('m', 'p', '4', 'v')
out = cv2.VideoWriter('output.avi',fourcc, 20.0, (640,480))

while(cap.isOpened()):
    ret, frame = cap.read()
    if ret==True:
        # Video reverse =0
        # frame = cv2.flip(frame,0)
        frame = cv2.flip(frame,1)
        # write the flipped frame
        out.write(frame)
        cv2.imshow('frame',frame)
        if cv2.waitKey(1) & 0xFF == ord('q'):
            break
    else:
        break

# Release everything if job is finished
cap.release()
out.release()
cv2.destroyAllWindows()

Windows Install OpenCV for Python

  1.  Install : Python-2.7.10.msi
  2. Add System Pach 【;C:\Python27;C:\Python27\Scripts】
  3. Install : Numpy-1.9.2-win32-Superpack-python2.7.exe
  4. Copy “cv2.pyd” to “Python27\Lib\site-packages\”
  5. Open Drawing.py
cv2.pyd in the OpenCV
【2.4.11.exe\opencv\build\python\2.7\x86】


測試用的程式
Drawing.py
https://gist.github.com/hunandy14/c67ee781b99322a2d1cf

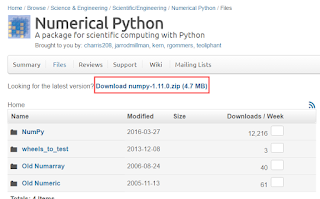

如果你要安裝新版的numpy可以直接下載最新版的


把它解壓縮放到桌面,開啟CMD
這裡已numpy-1.11.0示範
輸入 cd %USERPROFILE%/Desktop/numpy-1.11.0

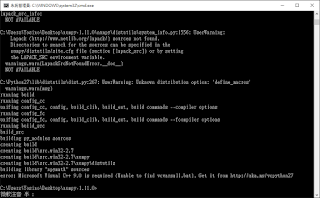

接下來輸入 setup.py build
沒意外會失敗,注意看訊息的最後一行,有給網址

http://aka.ms/vcpython27


進去之後連結到微軟的官方,下載並安裝
然後再次執行 setup.py build
執行完畢安裝 setup.py install
然後就完成了




2015年8月10日 星期一

opencv 檢視灰階影像

import numpy as np
import cv2

cap = cv2.VideoCapture(0)

while(True):
    # Capture frame-by-frame
    ret, frame = cap.read()

    # Our operations on the frame come here
    gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)

    # Display the resulting frame
    cv2.imshow('frame',gray)
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

# When everything done, release the capture
cap.release()
cv2.destroyAllWindows()

opencv 滑鼠點擊繪圖

import cv2
import numpy as np

drawing = False # true if mouse is pressed
mode = True # if True, draw rectangle. Press 'm' to toggle to curve
ix,iy = -1,-1

# mouse callback function
def draw_circle(event,x,y,flags,param):
    global ix,iy,drawing,mode


    if event == cv2.EVENT_LBUTTONDBLCLK:
        cv2.circle(img,(x,y),100,(255,0,0),-1)

    elif event == cv2.EVENT_LBUTTONDOWN:
        drawing = True
        ix,iy = x,y

    elif event == cv2.EVENT_MOUSEMOVE:
        if drawing == True:
            if mode == True:
                cv2.rectangle(img,(ix,iy),(x,y),(0,255,0),-1)
            else:
                cv2.circle(img,(x,y),5,(0,0,255),-1)

    elif event == cv2.EVENT_LBUTTONUP:
        drawing = False
        if mode == True:
            cv2.rectangle(img,(ix,iy),(x,y),(0,255,0),-1)
        else:
            cv2.circle(img,(x,y),5,(0,0,255),-1)

img = np.zeros((512,512,3), np.uint8)
cv2.namedWindow('image')
cv2.setMouseCallback('image',draw_circle)

while(1):
    cv2.imshow('image',img)
    k = cv2.waitKey(1) & 0xFF
    if k == ord('m'):
        mode = not mode
    elif k == 27:
        break

cv2.destroyAllWindows()

opencv 錄影

import numpy as np
import cv2

cap = cv2.VideoCapture(0)

# Define the codec and create VideoWriter object
fourcc = cv2.cv.CV_FOURCC('m', 'p', '4', 'v')
out = cv2.VideoWriter('output.avi',fourcc, 20.0, (640,480))

while(cap.isOpened()):
    ret, frame = cap.read()
    if ret==True:
        frame = cv2.flip(frame,0)

        # write the flipped frame
        out.write(frame)

        cv2.imshow('frame',frame)
        if cv2.waitKey(1) & 0xFF == ord('q'):
            break
    else:
        break

# Release everything if job is finished
cap.release()
out.release()
cv2.destroyAllWindows()

Opencv 繪圖

繪製各種形狀的圖形



# -*- coding: utf-8 -*-
import cv2
import numpy as np

#  畫布大小
img = np.zeros((720,1280,3), np.uint8)
# (位置),大小,(顏色)粗度
cv2.circle(img,(200,200), 100, (0,0,255), 2)
# (第一個座標)(第二個座標)(顏色),粗度
cv2.rectangle(img,(350,100),(550,300),(0,255,0),3)
# (第一個座標)(第二個座標)(顏色),粗度
cv2.line(img,(600,100),(800,300),(255,0,0),10)

pts = np.array([[10,5],[20,30],[70,20],[50,10]], np.int32)
pts = pts.reshape((-1,1,2))
cv2.polylines(img,[pts],True,(0,255,255))

font = cv2.FONT_HERSHEY_SIMPLEX
# (座標),大小,(顏色),粗度
cv2.putText(img,'Charlotte.HonG',(0,500), font, 5,(255,255,255),10,cv2.CV_AA)

while(1):
    cv2.imshow('Dring',img)
    if cv2.waitKey(20) & 0xFF == 27:
        break
cv2.destroyAllWindows()
